    0.5mm Thickness 304 Metal Pall Ring Distillation Tower Packing 25mm

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : Pall ring
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

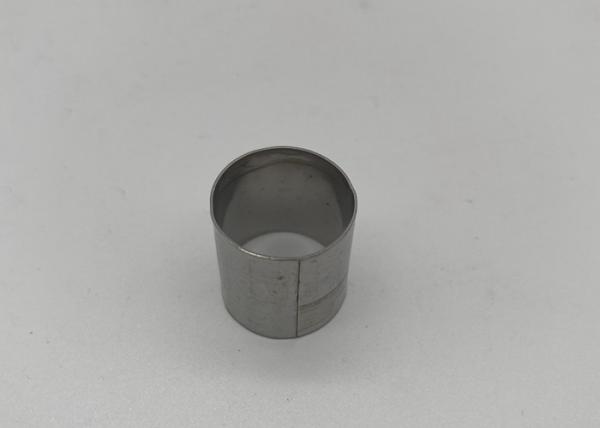

    0.5mm Thickness 304 Metal Pall Ring Distillation Tower Packing 25mm

    25mm 304 Distillation Tower Pall Ring Packing 0.5 Mm Thickness


    25mm 304 Distillation Tower Pall Ring Packing 0.5 Mm Thickness

    Description
    Product Name:Metal Pall RingSize:1 In / 25 Mm
    Material Certificate:YesWall Thickness:0.5 Mm
    Data Sheet:AvailableOEM:Yes
    Material:SS304Application:Distillation Tower Packing
    Sample:Free SampleWarranty:Lifetime Online Service
    High Light:

    25mm metal pall ring

    ,

    25mm pall ring packing

    ,

    distillation tower pall ring packing

    25 Mm 304 Distillation Tower 0.5 Mm Thickness Metal Pall Ring

    1. Metal Pall Ring Basic Info:

    Metal pall rings have more than 50% higher capacity than raschig ring. The pressure drop is only half of the raschig ring. The relative efficiency is about 30% higher than that of raschig ring.


    2. 25 mm Metal Pall Ring Specification:

    25mm Pall Rings
    Free Space (%)9425mm 304 Distillation Tower Pall Ring Packing 0.5 Mm Thickness 0
    Specific Surface Area (m2/m3) 209
    No. Per Unit Volume (m3 )49,500
    Packing Factor (m-1)176

    Specific Weight (kg/m3) 322 – 644

    Stainless Steel

    Dimensions (mm)25 x 25
    Thickness (mm)0.4 – 0.8
    3. Metal Pall Ring is a new type of filler improved on Raschig ring.
    Compared with the later, pall ring has improved the liquid distribution of filler layer greatly, with open windows on ring sidewall. Therefore it has productivity, low resistance, operating flexible and higher efficiency. Pall ring is widely applied to industry. It is still one of major annular fillers that has been adopted.
    4. Metal Pall Ring Features:

    Easily wettable

    High resistance to fouling

    High temperature endurable

    High temperature applications

    HIGH MECHANICAL STRENGTH

    High capacity with low pressure drop

    Mechanically robust, lesser probability of breakage

    Good liquid/gas distribution and high mass transfer efficiency


    0.5mm Thickness 304 Metal Pall Ring Distillation Tower Packing 25mm
