    Dn50 Random Tower Packing Raschig Rings SS304 For Chemical Industry

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : Pall ring
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Dn50 Random Tower Packing Raschig Rings SS304 For Chemical Industry

    Dn50 Tower Random Ss304 Packing Pall Ring For Chemical Industry


    Dn50 Tower Random Ss304 Packing Pall Ring For Chemical Industry

    Description
    Items:Metal Pall RingMaterial:SS304, SS316L SS316, Other
    Size:9mm-76mm ETCWall Thickness:0.3-1.2mm
    Model Number:HL20211012-02Usage:Absorption ,Chemical Engineering ETC
    Material Certificate:YesData Sheet:Available
    OEM:YesEqual Inch Type:1in, 2in, 3in, 3/8in, 5/8in, 1 1/2inch Other
    High Light:

    ss304 packing pall ring

    ,

    dn50 packing pall ring

    ,

    chemical industry 50 mm pall ring

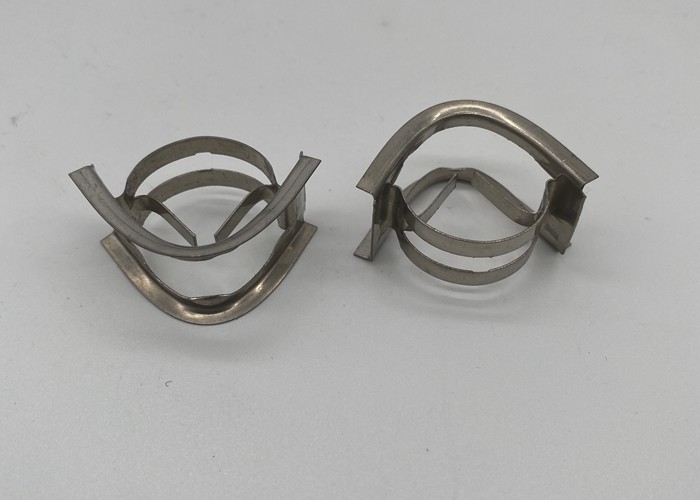

    SS304 DN50 Tower Random Packing For Chemical Industry Metal Pall Ring

    Product Introduction


    1. The pall ring is an improvement of the raschig ring.
    2. The difference for the Pall Ring is the addition of two rows of punched and formed fingers.
    3. This adjustment provides a significant performance increase: the capacity and efficiency is improved and the pressure drop is reduced.

    Technical Data of metal pall rings:

    Nominal size16 mm pall ring
    Thickness0,3 mm
    Weight340 kg/m³
    Surface area360 m²/m³
    Void fraction95 %
    Materialstainless steel
    Available materialscarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    Nominal size25 mm pall ring
    Thickness0,5 mm
    Weight393 kg/m³
    Surface area215 m²/m³
    Void fraction95 %
    Materialstainless steel
    Available materialscarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    Nominal size38 mm pall ring
    Thickness0,5 mm
    Weight285 kg/m³
    Surface area145 m²/m³
    Void fraction96 %
    Materialstainless steel
    Available materialscarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    Nominal size50 mm pall ring
    Thickness0,5 mm
    Weight207 kg/m³
    Surface area112 m²/m³
    Void fraction97 %
    Materialstainless steel
    Available materialscarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    Nominal size76 mm pall ring
    Thickness0,7 mm
    Weight109 kg/m³
    Surface area78 m²/m³
    Void fraction98 %
    Materialstainless steel
    Available materialscarbon steel, titanium, hastelloy, nickel, copper, aluminium and others on request

    Material


    Metal Pall Ring, Stainless steel Pall rings, Packing Pall Ring are available in a wide range of materials such as stainless steel ,carbon steel ,aluminum, bronze,304L,316L,and other alloy etc.


    Applications of metal pall rings

    1Degassing
    2Gas washing
    3Steam stripping
    4Air pollution control scrubbers
    5H2S, NH3 & SO2 absorption and stripping

    Dn50 Random Tower Packing Raschig Rings SS304 For Chemical Industry
