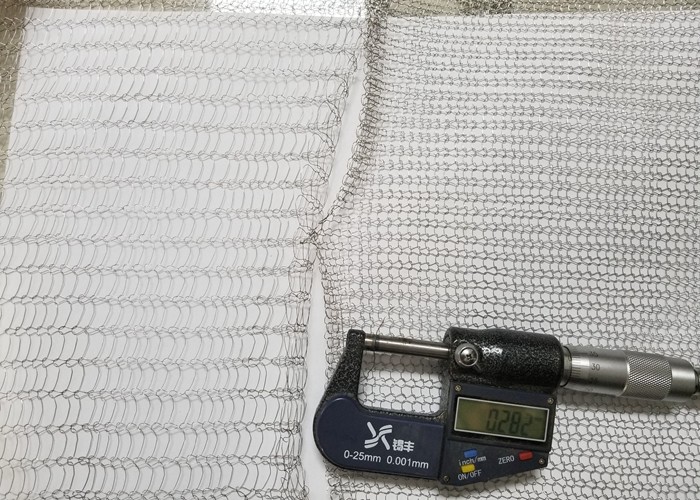

Ti single 0.25mm wire knitting mesh 431 type
Characteristic of Ti material in knitting mesh:
Titanium has metallic luster and ductility. The density is
4.5g/cm3. Melting point: 1660 ± 10 ℃. Boiling point 3287 ℃. Valence
+ 2, + 3 and + 4. The ionization energy is 6.82 ev. Titanium is
characterized by low density, high mechanical strength and easy
processing. The plasticity of titanium mainly depends on its
purity. The more pure titanium is, the more plastic it is. It has
good corrosion resistance and is not affected by the atmosphere and
sea water. Under normal temperature, it will not be corroded by
hydrochloric acid below 7%, sulfuric acid below 5%, nitric acid,
aqua regia or dilute alkali solution; only hydrofluoric acid,
concentrated hydrochloric acid, concentrated sulfuric acid, etc.
can act on it.
Industrial pure titanium: industrial pure titanium has more
impurities than chemical pure titanium, so its strength and
hardness are slightly higher. Its mechanical and chemical
properties are similar to those of stainless steel. Compared with
titanium alloy pure titanium, it has better strength and better
oxidation resistance than austenitic stainless steel, but its heat
resistance is poor. The impurities in TA1, TA2 and TA3 increase in
turn, and the mechanical strength and hardness increase in turn,
but the plasticity is tough Sex decreased in turn.
The knitted wire mesh material we have in stock.
PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S,
SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80,
Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber
glass, Co-knit 316L+PP flat...
Also we can handle other materials, but please specify when
ordering.
Knitted Wire Mesh applications:
Cable wrap
Exhaust seals
Lint traps-alum
Flame arrestors
Ground wire mesh
Oil-bath separators
Copper gauze mesh
Diesel injector filters
Mist elimination pads
Heat exchange media
Insulation blanket mesh
Metal & plastic sponges
Catalytic converter mesh
Oil & air breather elements
Mufflers and silencers, pneumatic tools
Separators for liquid vapor used in chemical and petro-chemical
plants
My understanding about the data sheet in HG/T 21618-1998 Wire Mesh
Demister.
| Type | Wire
(mm) | Density
(kg/m3) | Specific Area (m2/m3) | Void Fraction | Feature |
| SP | Flat wire | 0.1*0.4 | 168 | 529.6 | 0.9788 | Performance between DP & HR |
| round wire | 0.23 | 368 |
| DP | Flat wire | 0.1*0.3 | 186 | 625.5 | 0.9765 | High efficiency, high pressure drop |
| round wire | 0.19 | 493.8 |
| HR | Flat wire | 0.1*0.4 | 134 | 422.4 | 0.9831 | Low pressure drop |
| round wire | 0.23 | 293.9 |
| HP | round wire | 0.16
(0.08-0.22) | 128 | 403.5 | 0.9839 | It can be used to eliminate or slow down the adverse consequences
of vibration. |
The data in this sheet are all based on 304 material.
No doubt we produce and supply knitted wire mesh demisters, too.
Usually a fast delivery within 3 days can be expected if the order
is not too big nor too complex.
