Knitted Wire Mesh Mist Eliminator Stainless Steel 301 304 316
Copper

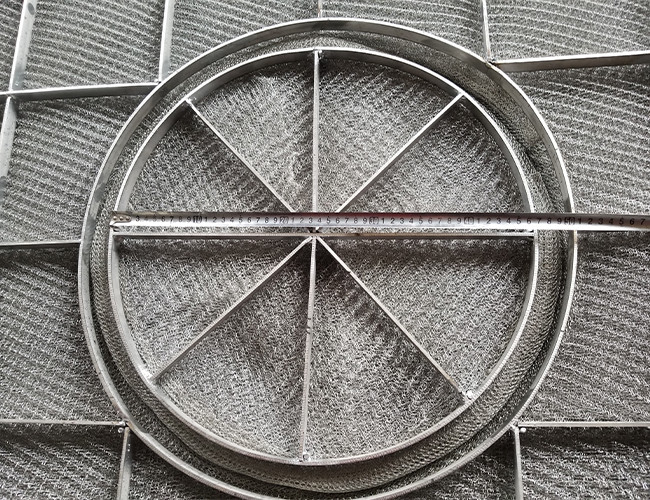

Wire Mesh Demister Specifications in this sheet:
| Item | Value | Unit |
| Material | SS316L | / |
| Shape & Size | Φ1700-Φ630
Φ2200-Φ820 | mm |
| Mesh Thickness | 150 | mm |
| Demsiter Height | 200 | mm |
| Wire Diameter | 0.23 | mm |
| Mesh Density | 112 | kg/m3 |
| Void Fraction | 0.986 | / |
| Specific Area | 244 | m2/m3 |
| Grids | 25*3 flat bar | mm |
Metal Wire Mesh Pad Demister Type and Applications
Wire Dia. Mm | Mesh Density Kg/m3 | Surface Area M2/m3 | Normal Micron Rating | Application |
| 0.15 | 195 | 650 | 3 | Very high efficiency in clean service |
| 0.15 | 145 | 480 | 4 | Fine droplet removal in clean service |
| 0.15 | 112 | 375 | 5 | General purpose in clean service |
| 0.28 | 195 | 355 | 5 | Optimum efficiency & pressure drop |
| 0.28 | 170 | 310 | 6 | General purpose not totally clean |
| 0.28 | 145 | 265 | 8 | Heavy Duty e.g. Oil & Gas Separators |
| 0.28 | 110 | 200 | 10 | Light fouling |
| 0.28 | 80 | 145 | 12 | Moderate fouling |
The wire mesh demister
installed above the surface of the liquid with some distance. From
one hand it allows some space for the natural disengagement of the
coarsest natural particles. From the other hand, it ensures that
the gas/ vapour flow is uniform over the whole area of the mist
eliminator
The gas / vapor containing droplets passes into mesh pad demister
at a predetermined velocity. It easily finds open path through the
mesh but the droplets and mist impinge on the filaments of mesh
where they coalesce and eventually grow to such a size to overcome
surface tension of liquid and force of gravity. Then the liquid
droplets so formed fall down. And the mist free gas / vapour passes
through the mesh demister pad.
The material we have in stock.
PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS301S,
SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80,
Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber
glass, Co-knit 316L+PP flat...
Also we can handle other materials, but please specify when
ordering.
Hi .tls for your kind checking,any question ,pls let me know
directly,i will give you professional suggestion ,your quick
enquiry will be highly appreciated.
