    AISI304 Crimped Woven Wire Mesh Demister Mist Eliminator Material

    Ask Lasest Price
    Brand Name : Yuanqiao
    Model Number : YQ-112
    Certification : ISO9001
    Price : Negociation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 pcs per month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    AISI304 Crimped Woven Wire Mesh Demister Mist Eliminator Material

    AISI304 Crimped Knitted Wire Mesh Roll Demister Mist Eliminator Material


    AISI304 Crimped Knitted Wire Mesh Roll Demister Mist Eliminator Material

    Description
    Material:SS304Standard:GB, ASTM, JIS, BS EN, Etc.
    Width:100mm - 1060mmTreatment:Corrugation
    Application:Demisters MakingWeaving Style:Sing Wire Knitting
    High Light:

    stainless steel knitted wire mesh

    ,

    demister pad


    AISI304 Crimped Knitted Wire Mesh Roll Demister Mist Eliminator Material

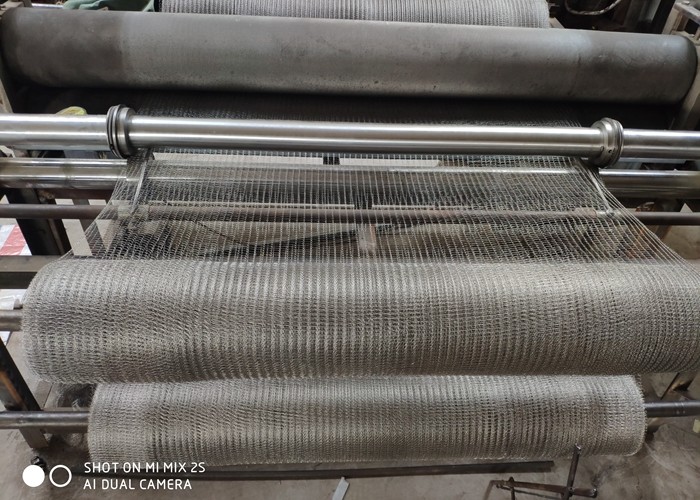

    We produce knitted wire mesh with different material, wire diameter and mesh width, both flat wire mesh and crimped wire mesh. Usually the width of wire mesh for demister making is between 100mm and 600mm. In fact we can supply mesh width range from 30mm to 1060mm.


    Applications of knitting wire mesh:

    Knitted wire mesh is the raw material used to make wire mesh demisters but it is used in a lot of application in many sectors of industry to produce:

    - thermal insulators

    - air treatment framed filters

    - full metallic antivibration dampers

    - cleaning of mechanical components

    - architecture and design components

    - anti intrusion and anti vandalism elements

    - elements for housing, fishing and gardening

    - automotive components like filters, antivibrations, separator rings, silencers etc.


    My understanding about the data sheet in HG/T 21618-1998 Wire Mesh Demister.


    TypeWire
    (mm)
    Density
    (kg/m3)

    Specific Area

    (m2/m3)

    Void FractionFeature
    SPFlat wire0.1*0.4168529.60.9788Performance between DP & HR
    round wire0.23368
    DPFlat wire0.1*0.3186625.50.9765High efficiency, high pressure drop
    round wire0.19493.8
    HRFlat wire0.1*0.4134422.40.9831Low pressure drop
    round wire0.23293.9
    HPround wire0.16
    (0.08-0.22)
    128403.50.9839It can be used to eliminate or slow down the adverse consequences of vibration.

    The data in this sheet are all based on 304 material.
